Architecture

This document provides visual representations of Ada’s system architecture, data flow, and component interactions.

System Overview

Ada is composed of several containerized services orchestrated via Docker Compose:

digraph system { rankdir=TB; node [shape=box, style=filled, fillcolor=lightblue]; user [label="User\nBrowser", fillcolor=lightgreen]; matrix_user [label="Matrix\nUsers", fillcolor=lightgreen]; web [label="Web Service\nNginx + Frontend\n(Port 5000)"]; matrix_bridge [label="Matrix Bridge\nmatrix-nio Client", fillcolor=lightcyan]; brain [label="Brain Service\nFastAPI Backend\n(Port 7000)"]; ollama [label="Ollama Service\nLLM Inference\n(Port 11434)"]; chroma [label="Chroma Service\nVector Database\n(Port 8000)"]; consolidation [label="Memory\nConsolidation\n(Nightly Cron)"]; scripts [label="Scripts Service\nTooling Container\n(On-demand)"]; user -> web [label="HTTP"]; matrix_user -> matrix_bridge [label="Matrix Protocol"]; web -> brain [label="API Proxy\n/api/* → /v1/*"]; matrix_bridge -> brain [label="/v1/chat/stream"]; brain -> ollama [label="LLM Requests"]; brain -> chroma [label="RAG Queries"]; consolidation -> brain [label="Uses"]; scripts -> chroma [label="Maintenance"]; scripts -> brain [label="Testing"]; {rank=same; user; matrix_user;} {rank=same; web; matrix_bridge;} {rank=same; brain;} {rank=same; ollama; chroma;} }

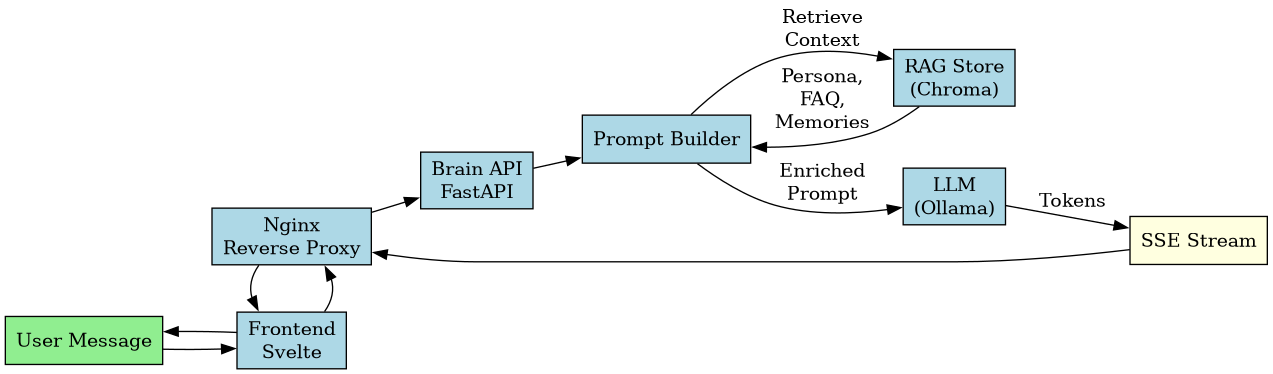

Request Flow

This diagram shows how a user message flows through the system:

digraph request_flow { rankdir=LR; node [shape=box, style=filled, fillcolor=lightblue]; user [label="User Message", fillcolor=lightgreen]; frontend [label="Frontend\nSvelte"]; nginx [label="Nginx\nReverse Proxy"]; brain [label="Brain API\nFastAPI"]; prompt [label="Prompt Builder"]; rag [label="RAG Store\n(Chroma)"]; llm [label="LLM\n(Ollama)"]; stream [label="SSE Stream", fillcolor=lightyellow]; user -> frontend -> nginx -> brain; brain -> prompt; prompt -> rag [label="Retrieve\nContext"]; rag -> prompt [label="Persona,\nFAQ,\nMemories"]; prompt -> llm [label="Enriched\nPrompt"]; llm -> stream [label="Tokens"]; stream -> nginx -> frontend -> user; {rank=same; frontend; nginx;} }

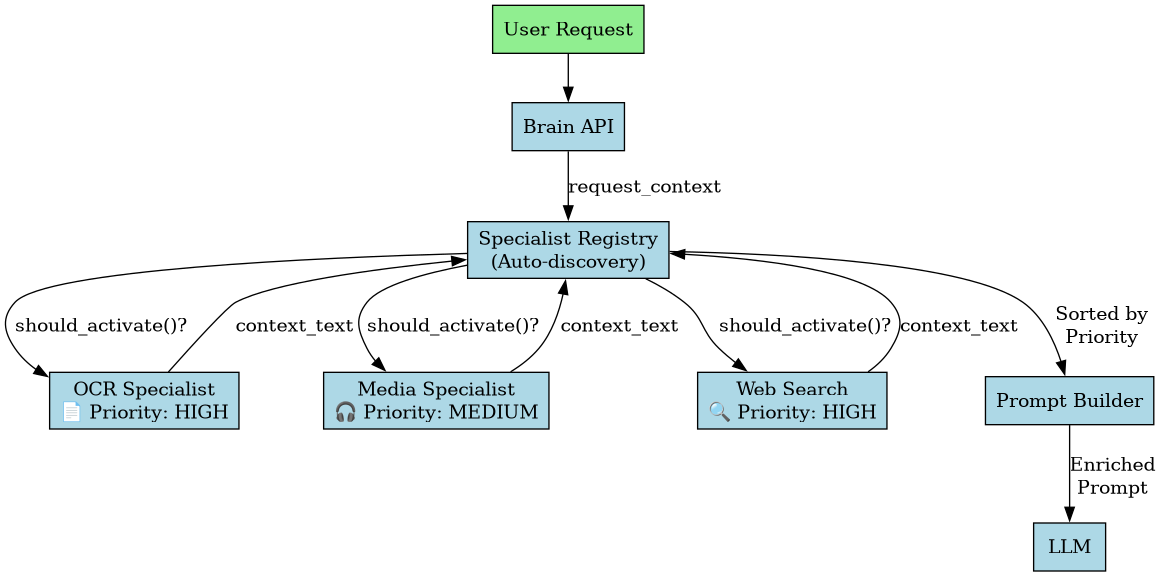

Specialist System Architecture

The plugin-based specialist system allows extensible capabilities:

digraph specialists { rankdir=TB; node [shape=box, style=filled, fillcolor=lightblue]; user [label="User Request", fillcolor=lightgreen]; brain [label="Brain API"]; registry [label="Specialist Registry\n(Auto-discovery)"]; ocr [label="OCR Specialist\n📄 Priority: HIGH"]; media [label="Media Specialist\n🎧 Priority: MEDIUM"]; websearch [label="Web Search\n🔍 Priority: HIGH"]; prompt_builder [label="Prompt Builder"]; llm [label="LLM"]; user -> brain; brain -> registry [label="request_context"]; registry -> ocr [label="should_activate()?"]; registry -> media [label="should_activate()?"]; registry -> websearch [label="should_activate()?"]; ocr -> registry [label="context_text"]; media -> registry [label="context_text"]; websearch -> registry [label="context_text"]; registry -> prompt_builder [label="Sorted by\nPriority"]; prompt_builder -> llm [label="Enriched\nPrompt"]; }

Context Caching System (v2.1)

Multi-timescale caching reduces redundant RAG queries and token usage:

  • Personas: 24-hour TTL (identity rarely changes)

  • FAQs: 24-hour TTL (knowledge base updates infrequently)

  • Memories: 5-minute TTL (balance freshness vs performance)

  • Conversations: 1-hour TTL (recent turns cached per session)

Benefits: - Reduces ChromaDB queries by ~70% for repeated context - Lower latency on cache hits (ms vs seconds) - LRU eviction prevents unbounded growth - Per-request cache stats logged for monitoring

Implementation: brain/context_cache.py (MultiTimescaleCache) integrated into PromptAssembler

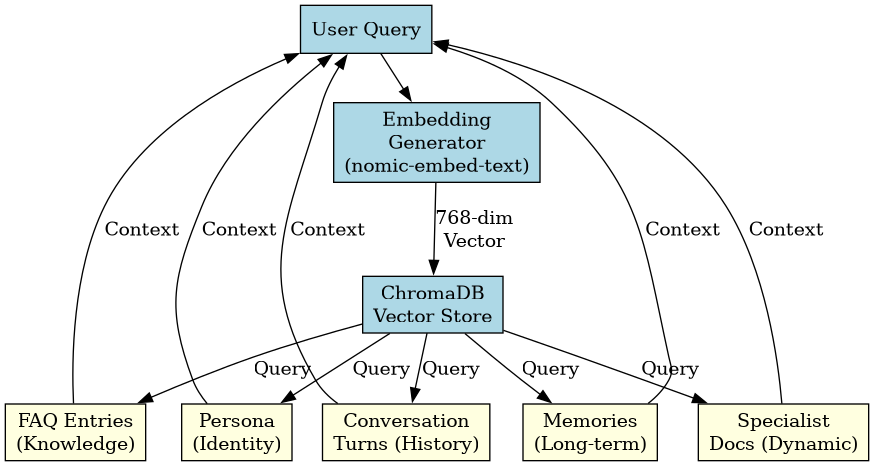

RAG System Components

The Retrieval-Augmented Generation system provides contextual memory:

digraph rag { rankdir=TB; node [shape=box, style=filled, fillcolor=lightblue]; prompt [label="User Query"]; embed [label="Embedding\nGenerator\n(nomic-embed-text)"]; chroma [label="ChromaDB\nVector Store"]; persona [label="Persona\n(Identity)", fillcolor=lightyellow]; faq [label="FAQ Entries\n(Knowledge)", fillcolor=lightyellow]; memory [label="Memories\n(Long-term)", fillcolor=lightyellow]; turns [label="Conversation\nTurns (History)", fillcolor=lightyellow]; specialist_docs [label="Specialist\nDocs (Dynamic)", fillcolor=lightyellow]; prompt -> embed; embed -> chroma [label="768-dim\nVector"]; chroma -> persona [label="Query"]; chroma -> faq [label="Query"]; chroma -> memory [label="Query"]; chroma -> turns [label="Query"]; chroma -> specialist_docs [label="Query"]; persona -> prompt [label="Context"]; faq -> prompt [label="Context"]; memory -> prompt [label="Context"]; turns -> prompt [label="Context"]; specialist_docs -> prompt [label="Context"]; }

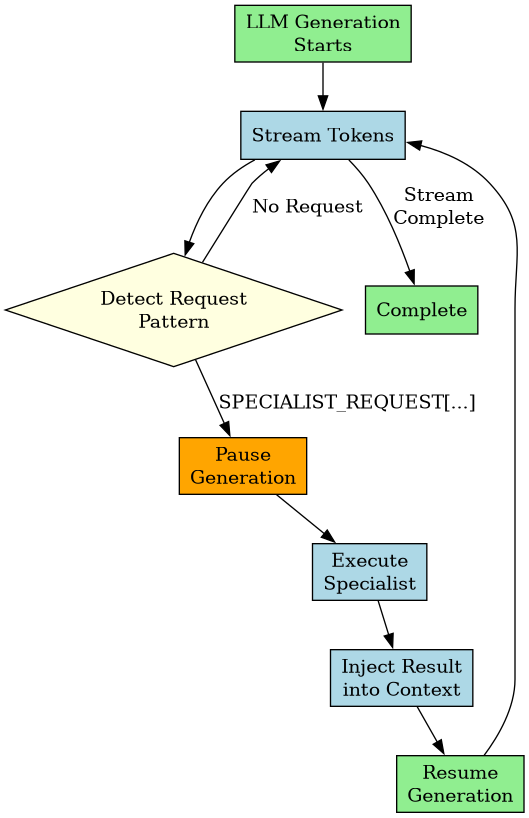

Bidirectional Specialist Flow

How the LLM can request specialist execution mid-response:

digraph bidirectional { rankdir=TB; node [shape=box, style=filled, fillcolor=lightblue]; start [label="LLM Generation\nStarts", fillcolor=lightgreen]; token [label="Stream Tokens"]; detect [label="Detect Request\nPattern", shape=diamond, fillcolor=lightyellow]; pause [label="Pause\nGeneration", fillcolor=orange]; execute [label="Execute\nSpecialist"]; inject [label="Inject Result\ninto Context"]; resume [label="Resume\nGeneration", fillcolor=lightgreen]; done [label="Complete", fillcolor=lightgreen]; start -> token; token -> detect; detect -> token [label="No Request"]; detect -> pause [label="SPECIALIST_REQUEST[...]"]; pause -> execute; execute -> inject; inject -> resume; resume -> token; token -> done [label="Stream\nComplete"]; }

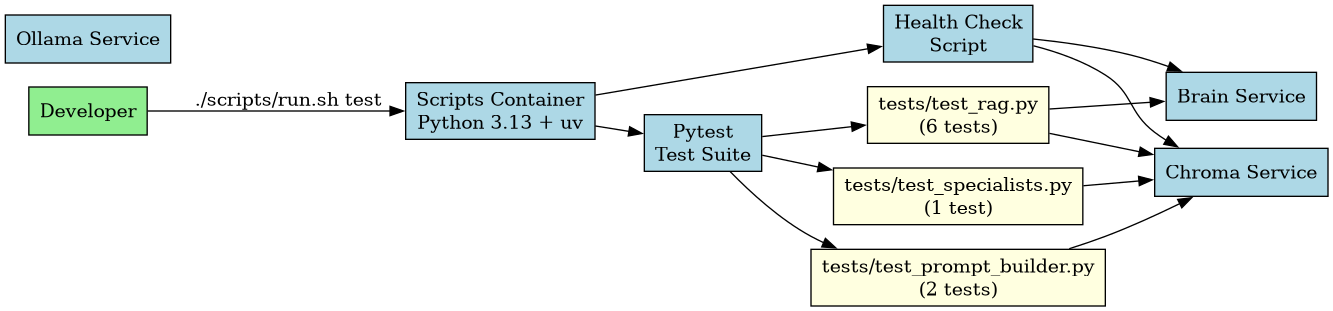

Testing Infrastructure

The scripts container provides isolated testing environment:

digraph testing { rankdir=LR; node [shape=box, style=filled, fillcolor=lightblue]; dev [label="Developer", fillcolor=lightgreen]; scripts [label="Scripts Container\nPython 3.13 + uv"]; pytest [label="Pytest\nTest Suite"]; health [label="Health Check\nScript"]; tests_rag [label="tests/test_rag.py\n(6 tests)", fillcolor=lightyellow]; tests_prompt [label="tests/test_prompt_builder.py\n(2 tests)", fillcolor=lightyellow]; tests_specialists [label="tests/test_specialists.py\n(1 test)", fillcolor=lightyellow]; brain [label="Brain Service"]; chroma [label="Chroma Service"]; ollama [label="Ollama Service"]; dev -> scripts [label="./scripts/run.sh test"]; scripts -> pytest; scripts -> health; pytest -> tests_rag; pytest -> tests_prompt; pytest -> tests_specialists; tests_rag -> chroma; tests_rag -> brain; tests_prompt -> chroma; tests_specialists -> chroma; health -> chroma; health -> brain; }

Contextual Router Architecture (v2.7+)

Intelligent query routing based on 22 patterns across 5 categories:

digraph contextual_router { rankdir=TB; node [shape=box, style=filled, fillcolor=lightblue]; user_msg [label="User Message", fillcolor=lightgreen]; router [label="Contextual Router\n22 Patterns", fillcolor=orange]; trivial [label="TRIVIAL\n(greetings, thanks)"]; fact [label="FACT RECALL\n(recent memories)"]; analytical [label="ANALYTICAL\n(requires reasoning)"]; creative [label="CREATIVE\n(needs inspiration)"]; code [label="CODE\n(development tasks)"]; lightweight [label="Lightweight RAG\n(persona only)", fillcolor=lightyellow]; focused [label="Focused RAG\n(recent memories)", fillcolor=lightyellow]; full [label="Full RAG\n(all context)", fillcolor=lightyellow]; user_msg -> router; router -> trivial [label="Pattern:\nhello|thanks"]; router -> fact [label="Pattern:\nwhat did I"]; router -> analytical [label="Pattern:\nwhy|how|explain"]; router -> creative [label="Pattern:\nwrite|imagine"]; router -> code [label="Pattern:\nfunction|class"]; trivial -> lightweight; fact -> focused; analytical -> full; creative -> full; code -> full; }

Multi-Timescale Cache Architecture (v2.1+)

Three-tier caching for performance optimization:

digraph caching { rankdir=LR; node [shape=box, style=filled, fillcolor=lightblue]; request [label="Chat Request", fillcolor=lightgreen]; cache_check [label="Check Caches", fillcolor=orange]; persona_cache [label="Persona Cache\nTTL: 24hr", fillcolor=lightyellow]; faq_cache [label="FAQ Cache\nTTL: 24hr", fillcolor=lightyellow]; memory_cache [label="Memory Cache\nTTL: 5min", fillcolor=lightyellow]; response_cache [label="Response Cache\nTTL: 1hr\n(v2.8+)", fillcolor=lightyellow]; chroma [label="ChromaDB\n(Miss)"]; request -> cache_check; cache_check -> persona_cache [label="HIT"]; cache_check -> faq_cache [label="HIT"]; cache_check -> memory_cache [label="HIT"]; cache_check -> response_cache [label="HIT\n(full response)"]; cache_check -> chroma [label="MISS"]; {rank=same; persona_cache; faq_cache; memory_cache; response_cache;} }

Parallel Optimization Architecture (v2.9+)

2.5x speedup through parallel RAG retrieval and specialist execution:

digraph parallel { rankdir=TB; node [shape=box, style=filled, fillcolor=lightblue]; request [label="Chat Request", fillcolor=lightgreen]; parallel [label="ThreadPoolExecutor\n4 Workers", fillcolor=orange]; subgraph cluster_rag { label="Parallel RAG (3.96x speedup)"; style=filled; fillcolor=lightgray; persona [label="Get Persona\n20ms"]; memories [label="Get Memories\n80ms"]; faqs [label="Get FAQs\n40ms"]; turns [label="Get Turns\n60ms"]; } subgraph cluster_specialists { label="Parallel Specialists (2.98x speedup)"; style=filled; fillcolor=lightgray; ocr [label="OCR\n(HIGH priority)"]; web [label="Web Search\n(HIGH priority)"]; media [label="Media\n(MEDIUM priority)"]; } gather [label="Gather Results\n80ms total\n(was 200ms)", fillcolor=lightgreen]; llm [label="LLM Inference"]; request -> parallel; parallel -> persona; parallel -> memories; parallel -> faqs; parallel -> turns; parallel -> ocr; parallel -> web; persona -> gather; memories -> gather; faqs -> gather; turns -> gather; ocr -> gather; web -> gather; media -> gather [style=dashed, label="Sequential"]; gather -> llm; }

Data Flow: Conversation Turn (Optimized v2.9)

Complete flow with router, caching, and parallel optimizations:

digraph conversation_turn_v29 { rankdir=TB; node [shape=box, style=filled, fillcolor=lightblue]; user_msg [label="User Message", fillcolor=lightgreen]; api [label="POST /v1/chat/stream"]; router [label="Contextual Router\n~10ms", fillcolor=orange]; response_cache [label="Response Cache\nCheck", fillcolor=lightyellow]; parallel [label="Parallel Context\n~80ms", fillcolor=orange]; specialists [label="Execute\nSpecialists"]; prompt [label="Build Final\nPrompt"]; llm [label="Stream LLM\nResponse"]; store_turn [label="Store Turn\nin Chroma"]; cache_response [label="Cache Response", fillcolor=lightyellow]; user_response [label="User Sees\nResponse", fillcolor=lightgreen]; user_msg -> api; api -> router; router -> response_cache; response_cache -> user_response [label="HIT (~40%)", style=dashed, color=green]; response_cache -> parallel [label="MISS"]; parallel -> specialists; specialists -> prompt; prompt -> llm; llm -> store_turn; llm -> cache_response; llm -> user_response; store_turn -> parallel [label="Available for\nNext Query", style=dashed]; }

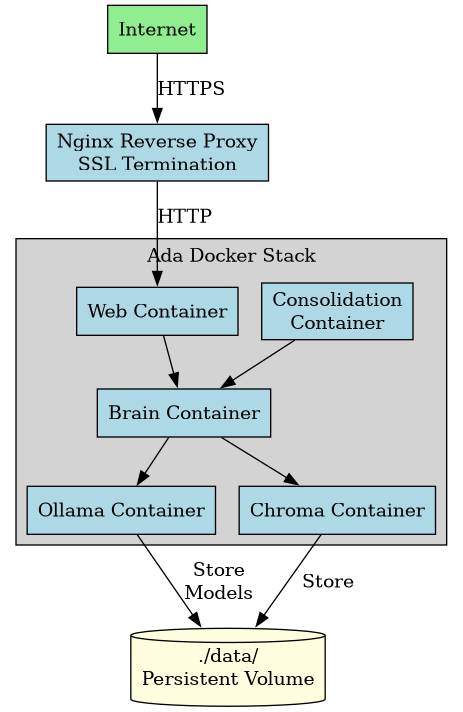

Deployment Architecture

Production deployment structure:

digraph deployment { rankdir=TB; node [shape=box, style=filled, fillcolor=lightblue]; internet [label="Internet", fillcolor=lightgreen, shape=cloud]; nginx_proxy [label="Nginx Reverse Proxy\nSSL Termination"]; subgraph cluster_ada { label="Ada Docker Stack"; style=filled; fillcolor=lightgray; web [label="Web Container"]; brain [label="Brain Container"]; ollama [label="Ollama Container"]; chroma [label="Chroma Container"]; consolidation [label="Consolidation\nContainer"]; } data_volume [label="./data/\nPersistent Volume", shape=cylinder, fillcolor=lightyellow]; internet -> nginx_proxy [label="HTTPS"]; nginx_proxy -> web [label="HTTP"]; web -> brain; brain -> ollama; brain -> chroma; consolidation -> brain; chroma -> data_volume [label="Store"]; ollama -> data_volume [label="Store\nModels"]; }
